V Serisi Vakum Pompalar Ürün Detayları
VH

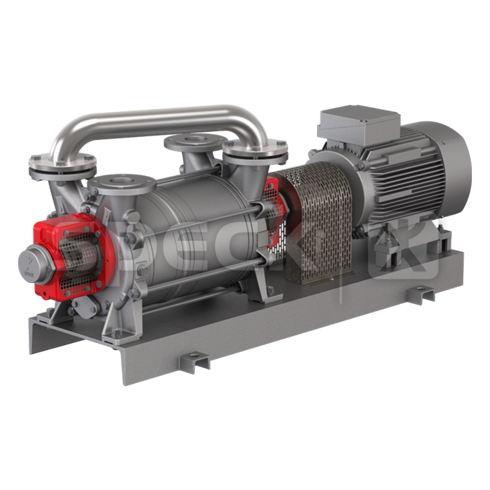

VH Series – Tried-and-tested Robust Technology for Deep Vacuum Ranges
  • Two-stage pumps in base plate version with B3 standard
  • Sound pressure level 66 - 79 db(A)
Media
dry and humidified gases
operational liquid max. 100 °C
absorbed gas max. 120 °C
Motor
1,1 – 75,0 KW, 1~Mot / 3~Mot
Material design
Stainless steel
Cast iron
Non-ferrous metal
Suction connection
G 1 1/4 – DN 100
Pressure connection
G 1 1/4 – DN 100
Sealing
Mechanical seal
Dimensions (WHD)
Medical engineering
Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization)

Plastics industry
  • Extruder degasification
Food industry / Pharmaceutical industry
  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Vacuum cooking of fruits, vegetables, pulps and mush
  • Thickening and crystallisation of sugar under vacuum
Chemical industry
  • Distillation / separation of liquids

Advantages
  • Tried-and-tested robust design
  • Developed/designed for continuous operation
  • Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
  • Requirement-related design due to the use of diverse materials
