V Serisi Vakum Pompalar Ürün Detayları
VZ

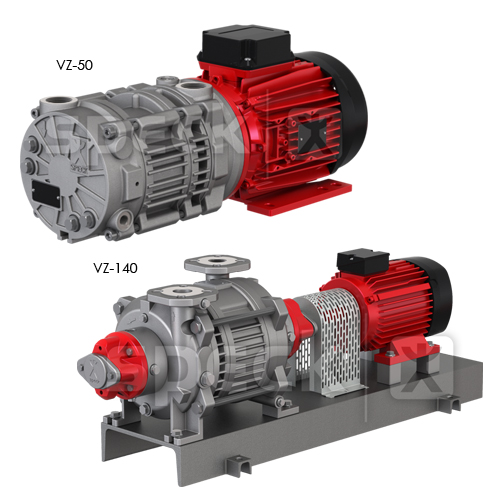

VZ Series – Robust and Low-noise Technology for Deep Vacuum Ranges
  • Two-stage pumps
  • Close-coupled version with B35 close-to-standard motors
  • Base plate version with B3 standard motors
  • Bracket version with B5 standard motors
  • Close-coupled version upon request

Media
dry and humidified gases
operational liquid max. 100 °C
absorbed gas max. 120 °C
Motor
1,1 – 8,2 kW, 3~Mot
Material design
Stainless steel
Cast iron
Non-ferrous metal
Suction connection
G 1 – DN 40
Pressure connection
G 1 – DN 40
Sealing
Mechanical seal
Dimensions (WHD)

Medical engineering
  • Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization)
Plastics industry
  • Extruder degasification
Food industry / Pharmaceutical industry
  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Vacuum cooking of fruits, vegetables, pulps and mush
  • Thickening and crystallisation of sugar under vacuum
Chemical industry
  • Distillation / separation of liquids

Advantages
  • Developed/designed for continuous operation
  • Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
  • Requirement-related design due to the use of diverse materials
  • With a maximum sound pressure level of 60 to 66 db(A) much more quiet than a conventional liquid ring vacuum pump
  • VZ 110 / 140 / 180 are alternatives to VH series due to identical connection dimensions
