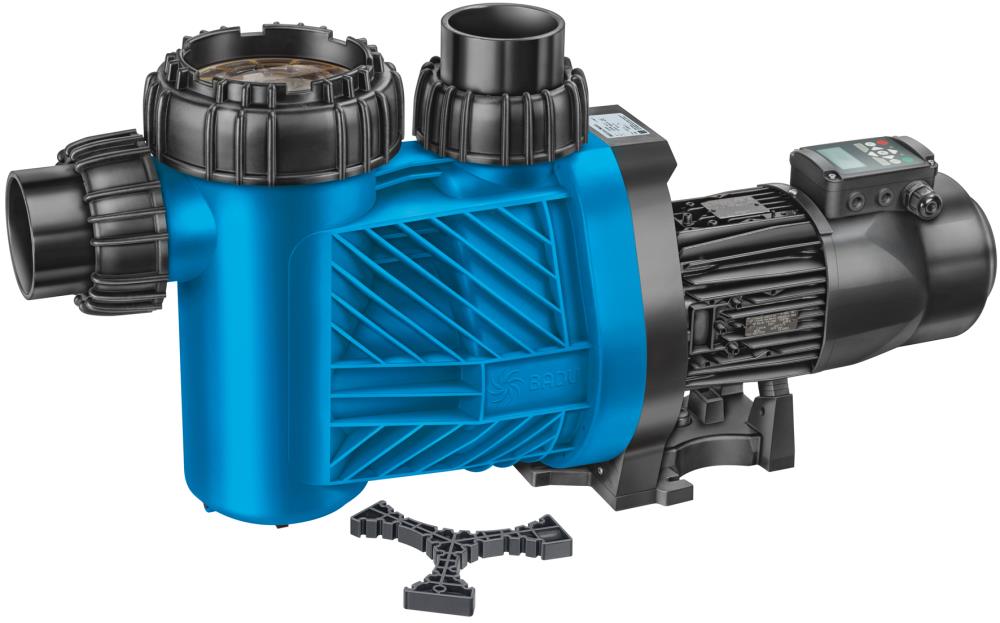

BADU® Eco Motion
High comfort, low consumption.
Highly efficient package for the major tasks in the premium sector: a converter fitted on to the motor in modular form with a plug-in principle combined with the BADU 90/40. The user-friendly intuitive operation via touchpad, as well as serial interfaces, hardly allow for any more comfort in a pump!
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
30 - 200 |
|
Filter size in mm: |
920 - 1100 |
|
Flow rate Q in m³/h: |
max. 40 |
|
Total head H in m WS: |
max. 20 |
|
Motor performance in kW (P2): |
max. 2.20 |
|
Strainer capacity in l: |
approx.6 |
|
Strainer basket mesh size in mm: |
approx. 3.0 x 2.8 |
|
Pool type: |
Indoor Pool,Natural pool/swimming pond |
|
Class: |
Premium,GREEN |
|
Pump casing: |
PP TV 30 |
|
Gland housing: |
PP TV 30 |
|
Impeller: |
PPE TV 30 |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
stainless steel 1.4301 |
|
Intermediate housing: |
PP TV 30 |
|
Gland housing: |
PP TV 40 |
|
Glue socket: |
ABS |
|
Lid: |
PC, transparent / PA 66 GF 30 |
Motors
Special motors on request.
Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen.
