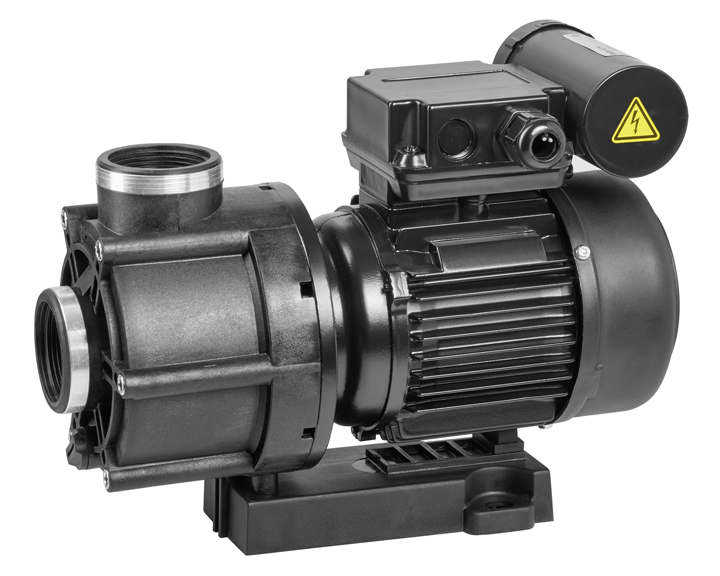

BADU® 42/12
Small jet pump and additional pump, available in 3 designs.
For bath tubs and small whirlpools.
Field of application
BADU 42/6, BADU 42/9 and BADU 42/12 are the perfect jet pumps for bath tubs and whirlpools.
Design
Monoblock-type pump with a closed bellow-type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
|
Pool size in m³: |
30 - 60 |
|
Flow rate Q in m³/h: |
12 |
|
Total head H in m WS: |
6 |
|
Motor performance in kW (P2): |
0.65 |
|
Pump casing: |
PP GF 30 |
|
Gland housing: |
PP GF 30 |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
Galvanised steel |
Motors
Special motors on request.
Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen.
