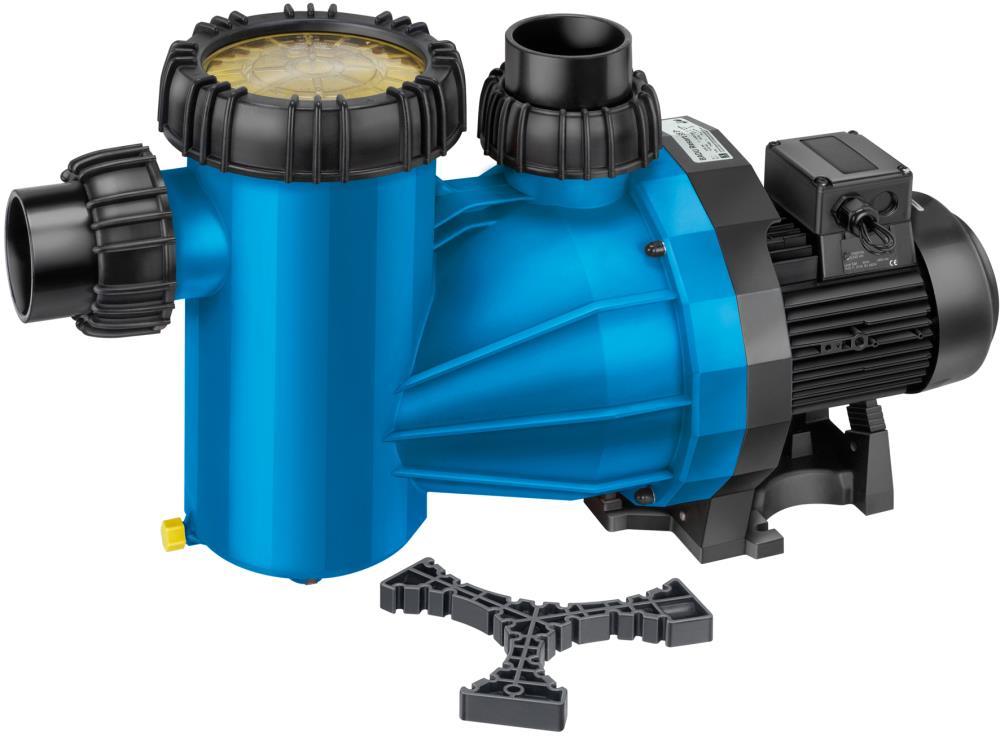

BADU® Resort 110
The BADU Resort covers fields of application which would otherwise be served by expensive, heavy duty bronze and cast-iron pumps. The BADU Resort's areas of expertise are wellness spas with large pools or attractions such as splash showers and waterfalls, hotel swimming pools and extraordinary private swimming pools. Thanks to the high quality reinforced fibreglass plastic version, investment costs are dramatically reduced without affecting the superior performance and durability.

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation

Pool equipment: Circulation pump
Pool size in m³: 400 - 500
Filter size in mm: larger than 1100
Flow rate Q in m³/h: 105
Total head H in m WS: 10
Motor performance in kW (P2): 5.50
Strainer capacity in l: approx.10
Strainer basket mesh size in mm: approx. 3.4 x 3.2
Pool type: Outdoor Pool,Indoor Pool,Natural pool/swimming pond
Installation: Built-in pool
Class: Premium
Pump casing: PP GF 30
Diffuser: PP GF 30
Impeller: PPE GF 30 / PP GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: stainless steel
Intermediate housing: PP TV 40
Gland housing: PP TV 40
Glue socket: ABS
Impeller nut: PP GF 30

Motors
Special motors on request. Also available with PM motors!

Miscellaneous
Opening device is included in delivery.

The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.

For higher salt concentrations please contact the company SPECK Pumpen.
