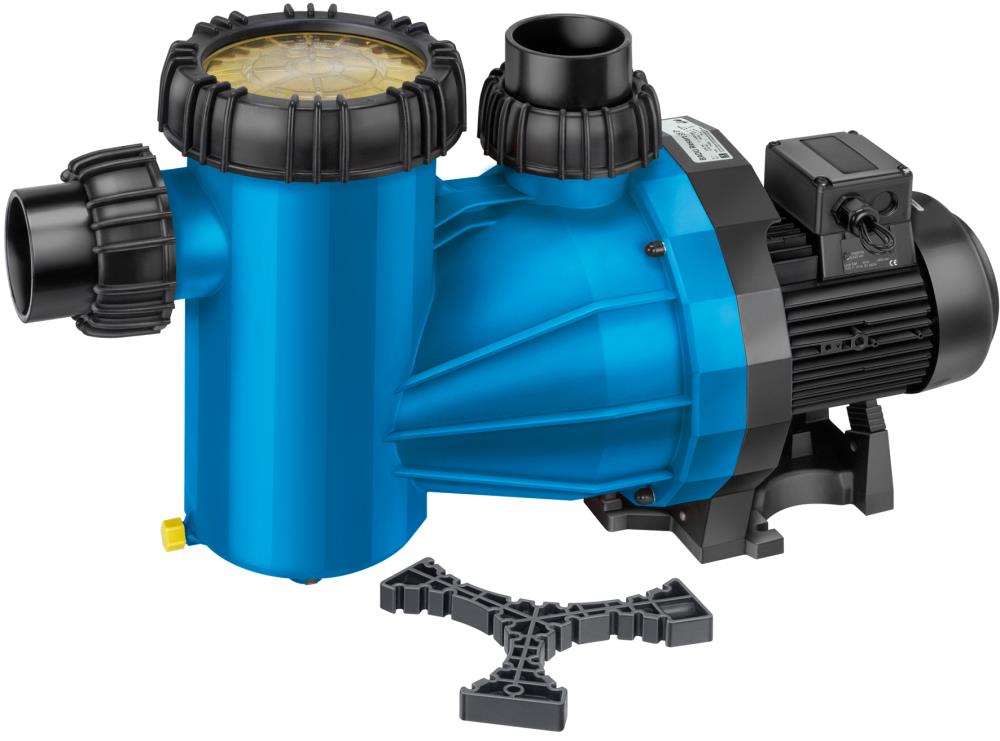

BADU® Resort 110-PM
Successful circulation pump with PM motor.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below the water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Pool equipment:
Circulation pump
Pool size in m³:
400 - 500
Filter size in mm:
larger than 1100
Flow rate Q in m³/h:
105
Total head H in m WS:
10
Motor performance in kW (P2):
5.50
Strainer capacity in l:
approx.10
Strainer basket mesh size in mm:
approx. 3.4 x 3.2
Pool type:
Outdoor Pool,Indoor Pool,Natural pool/swimming pond
Installation:
Built-in pool
Class:
GREEN/td>
Pump casing:
PP GF 30
Diffuser:
PP GF 30
Impeller:
PPE GF 30 / PP GF 30
Strainer basket:
PP
Mechanical seal:
carbon / ceramic / NBR
Screws:
stainless steel
Intermediate housing:
PP TV 40
Gland housing:
PP TV 40
Glue socket:
ABS
Impeller nut:
PP GF 30
Miscellaneous
Opening device is included in delivery.
The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen.
