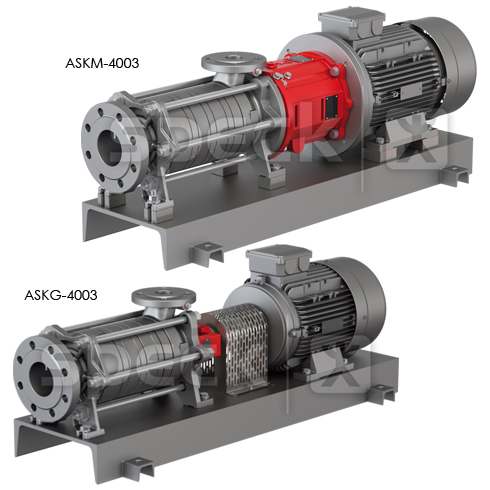

ASKG / ASKM
Side channel pumps with NPSH suction stage
-
With mechanical seal or magnetic coupling
-
Multi-stage
-
Self-priming
-
Suitable for the delivery of gas shares
-
Nominal pressure PN 40
Media
Water max. 180 °C
Oil: -100 – 350 °C
Motor
0,37 – 55,0 kW, 3~Mot
Material design
Stainless steel
Bronze
Spheroidal graphite cast iron
Suction connection
DN 40 – DN 100
Pressure connection
DN 20 – DN 65
Sealing
Separating can / Magnetic drive
Mechanical seal
Dimensions (WHD)
-/-
Power engineering
-
Delivery of hot water in boiler sytems
-
Recovery of condensates (water)
-
Delivery of liquid gas
-
Ship building
-
Delivery of salt water and fresh water
-
Further applications
-
Extraction of palm-oil
Advantages
-
Robust design
-
Long service life and low maintenance costs
-
High operational safety
-
Application under difficult conditions in industry
-
Magnetic coupled version is leakage- and maintenance-free
-
Combined pump for the delivery of liquids at unfavourable suction-side conditions
-
Supply heads of less than 0.5 m after consultation with the works
-
Pump application for liquids close to boiling point
-
Very favourable NPSH behaviour
-
Low dynamic load (n = 1450 rpm)
