V Serisi Vakum Pompalar Ürün Detayları
VG

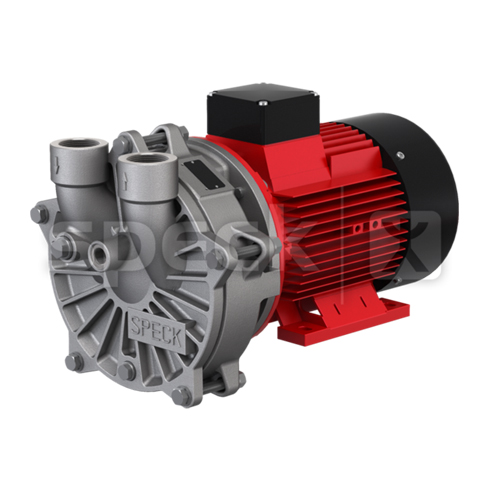

VG Series – Valveless and low-maintenance

  • Single-stage pump with valveless technology
  • Close-coupled version with B35 close-to-standard motors
  • Bracket version with B5 standard motors
  • Sizes VG 95 up to 255 in thread and flange version
  • Sound pressure level 65 - 68 db(A)
Media
dry and humidified gases,
delivery of liquids and minor impurities
operational liquid 80 °C max.
absorbed gas 120 °C max.
Motor
0,75 – 8,2 KW, 3~Mot
Material design
Stainless steel
Suction connection
G 1 – DN 50
Pressure connection
G 1 – DN 50
Sealing
Mechanical seal
Dimensions (WHD)

Plastics industry
  • Vacuum calibration for the manufacturing of plastic profiles
Food industry / Pharmaceutical industry
  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam
  • Removal of internal organs in the fish and poultry processing industry
Chemical industry
  • Distillation / separation of liquids
  • Recovery of condensates (solvents)
Advantages
  • Extended maintenance intervals due to less deposits and wear as almost free of dead spots
  • Easily accessible working chamber
  • Almost as powerful as V series
  • Suitable for delivery of liquids and minor impurities
  • Suitable for frequently changing operating conditions
